B100 Small Bone Multi-functional Orthopedic Drill and Saw System
Product Name: B100 Small Bone Multi-functional Orthopedic Drill and Saw System
Type: Surgical Power Tools
Speed Range: 0-1200rpm Torque Range: 2.9N-m
Oscillations:0-16000cpm Hollow Diameter:2.5mm
Operation Voltage: 7.2V Battery Volumn: 1400mAh
Radial Circle Run-Out: ≤0.1mm Biggest Drill Bit Diameter: 4mm
Product Description:
Product Name: B100 Small Bone Multi-functional Orthopedic Drill and Saw System
Type: Surgical Power Tools
Functions: Applicable for Animal Dog Canis Cat Orthopedic Surgeries, Hand and Foot Surgery.
Features: Various Attachments & Factory Price

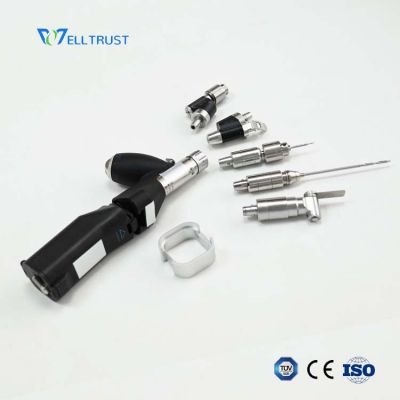

Our B100 Small Bone Multi-functional Orthopedic Drill and Saw System is ideal veterinary orthopedic drill,

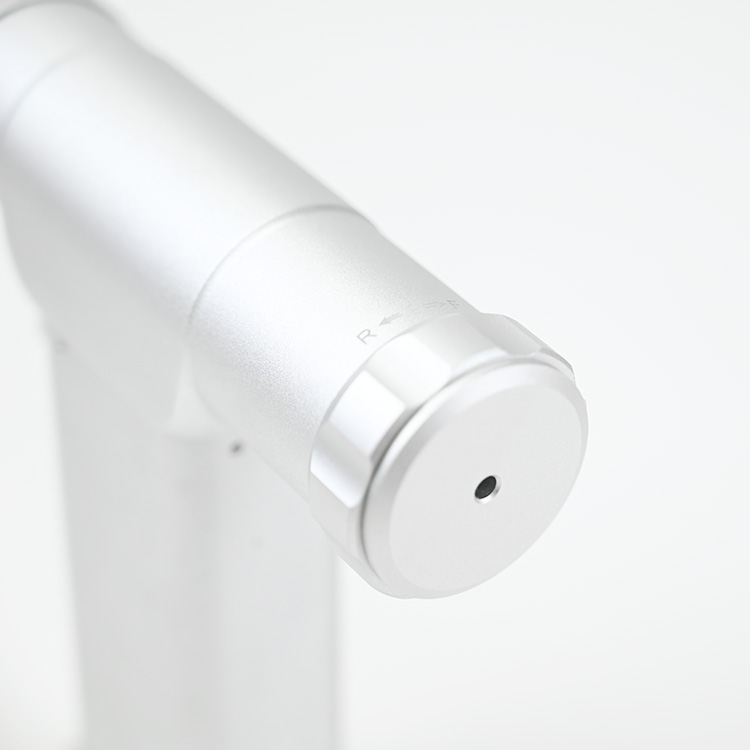

it is cannulated drill, hollow motor,it can work with 4 attachments:

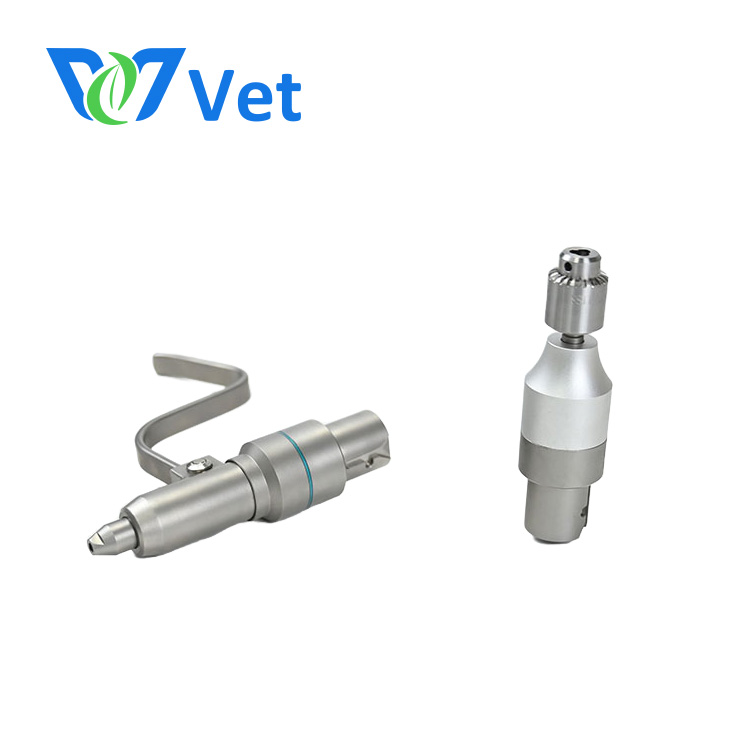

1. Jacobs Drill Chuck (0-4.0mm);
2. Small AO Drill Chuck (0-4.0mm);

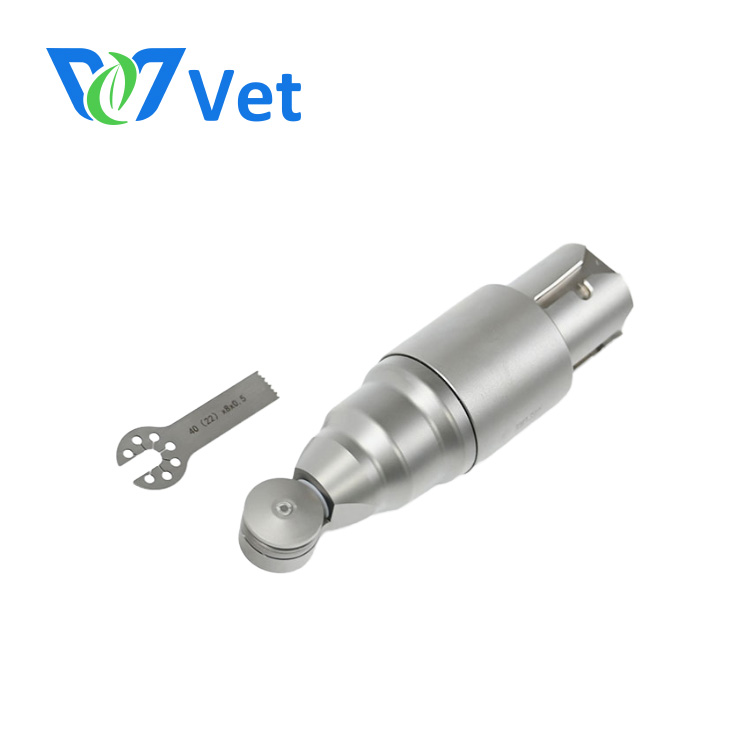

3. Mini Oscillating Saw Chuck;
4. K Wire Chuck (0-2.5mm).

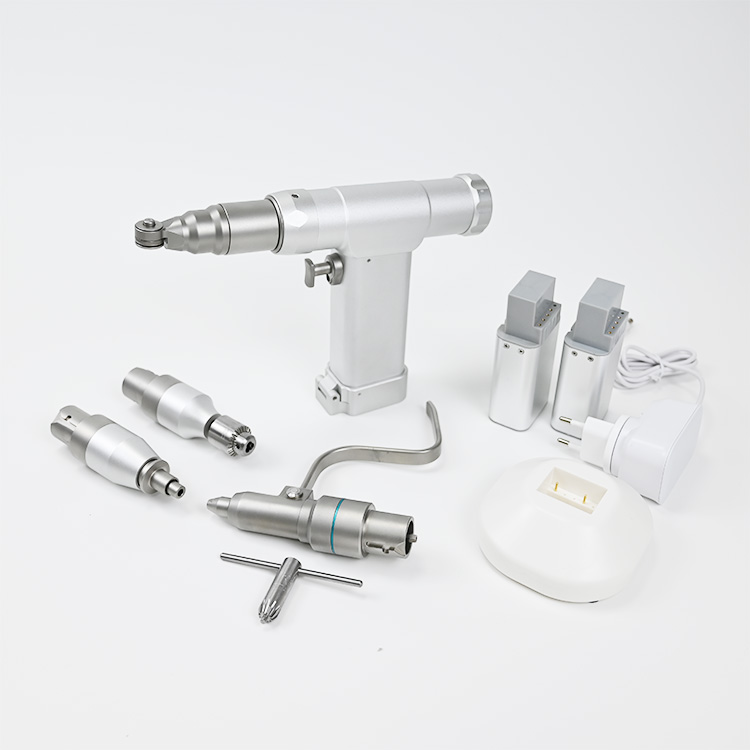

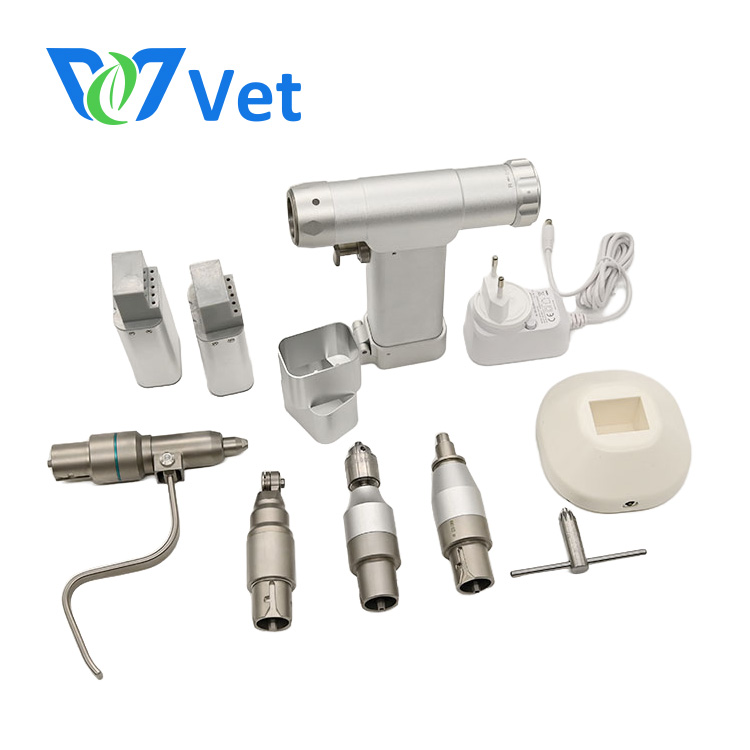

Veterinary Orthopedic Drill Standard Components:

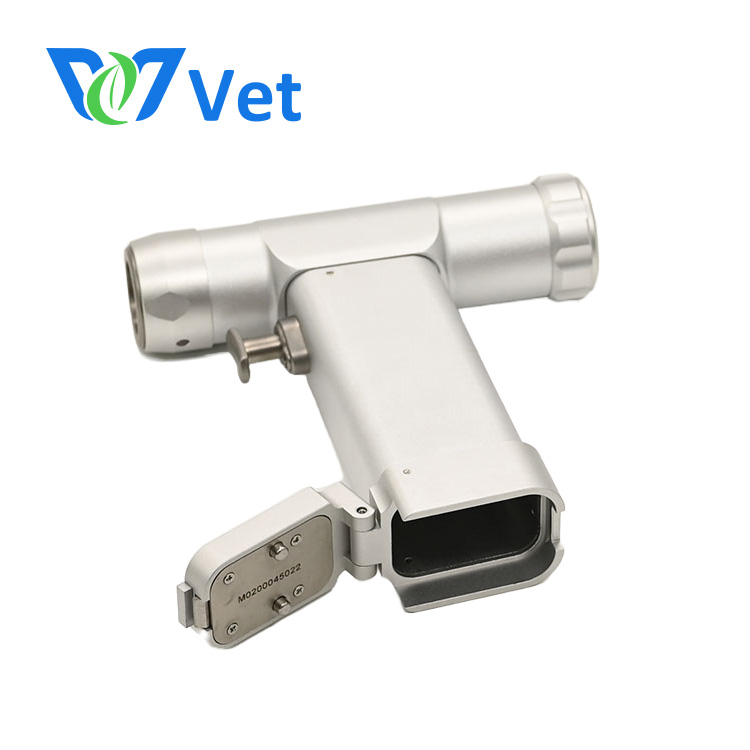

One Hand Piece
One Bone Drill Adapter (Canulated)
One Oscilllating Saw Adapter
One Small AO Adapter
One K Wire Adpater (Optional)
One Charger
Two 7.2V Batteries
One Aseptic Battery Transfer Rings
Two Oscillating Saw Blades
One Drill Chuck Key

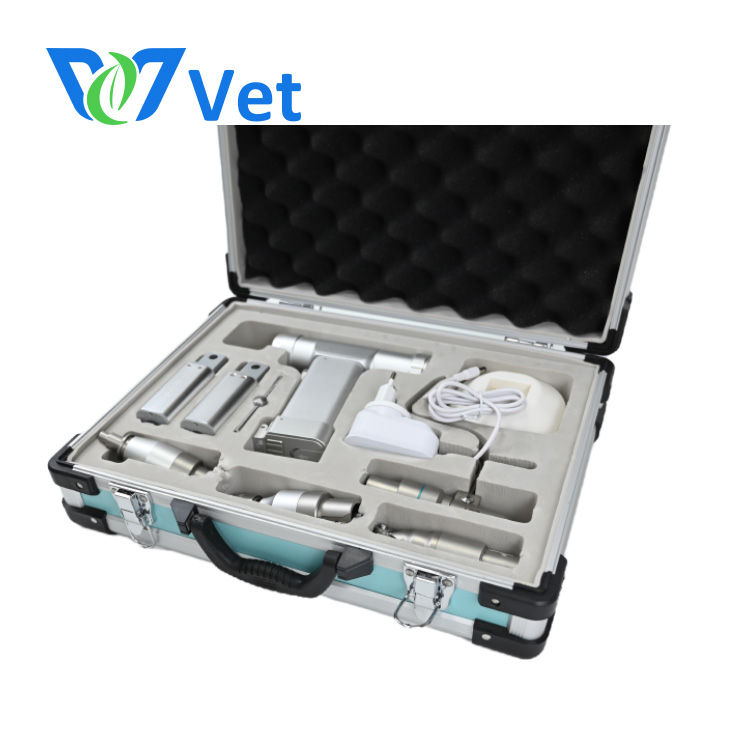

One Aluminim Case
Features:
1. New Design, Much more Lighter, Stable and Safe than the Old Style.
2. Adopt Imported Motor, Widely Compatibility.
3. Lower Noise, Noise ≤75dB.
4. Light Weight, the handpiece with one battery is 0.95kg.
5. NI-MH Battery, 1400mAh.
6. The handpiece and attachments are Autoclavable.
7. Smaller sizer, the handpiece width is 14cm, the handpiece length is 16cm.

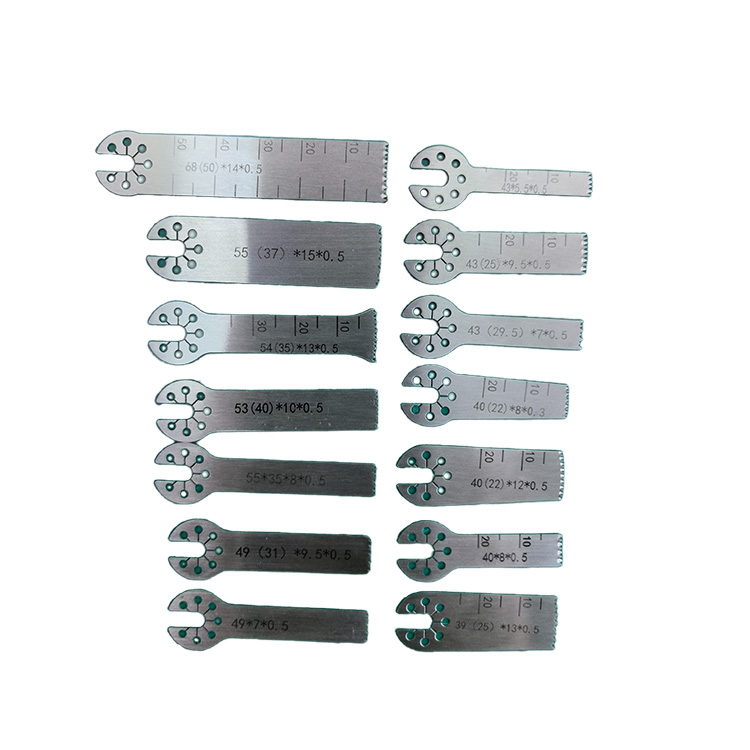

The available saw blades for our B100 veterinary orthopedic drill:
| No. | Total Length*Width*Thickness | Working Length |
| B100101 | 39*13*0.5mm | 25*13*0.5mm |
| B100102 | 40*8*0.5mm | 22*8*0.5mm |
| B100103 | 40*12*0.5mm | 22*12*0.5mm |
| B100104 | 40*8*0.3mm | 22*8*0.3mm |
| B100105 | 43*7*0.5mm | 29.5*7*0.5mm |
| B100106 | 43*9.5*0.5mm | 25*9.5*0.5mm |
| B100107 | 43*5.5*0.5mm | 25*5.5*0.5mm |
| B100108 | 49*7*0.5mm | 31*7*0.5mm |
| B100109 | 49*9.5*0.5mm | 31*9.5*0.5mm |
| B100110 | 55*8*0.5mm | 35*8*0.5mm |
| B100111 | 53*10*0.5mm | 40*10*0.5mm |
| B100112 | 54*13*0.5mm | 35*13*0.5mm |
| B100113 | 55*15*0.5mm | 37*15*0.5mm |
| B100114 | 68*14*0.5mm | 50*14*0.5mm |
Warranty：
2 Years warranty for the motor, 3 months for the battery and other accessories.
